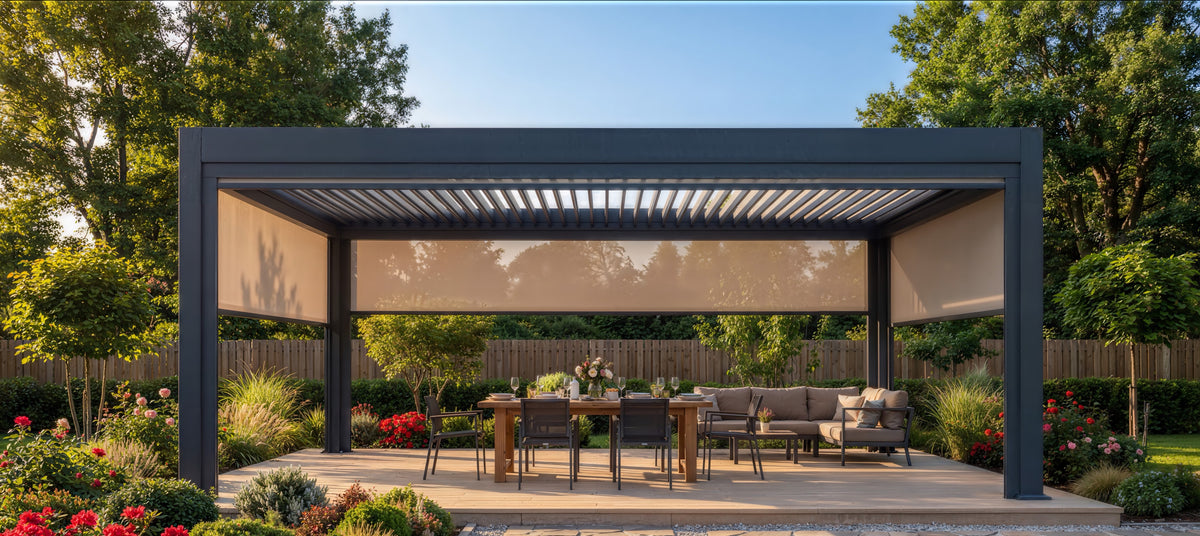

Pergola 4
Adjust shade without wiring
The manual louvre roof gives direct control over light and ventilation with a verified 0–90° tilt range. It is a straightforward choice where a powered roof is not required.
Australian-based · Serving projects worldwide
GrainMetal Aluminium · Global Project Support
Global Enquiries
Customer Service 091 234-ELLA
Currency
Free shipping on All Orders. No Minimum Purchase
8
Standard footprints
4
Core colour options
Custom
Made-to-order sizing
AU + Global
Project enquiries
GrainMetal Aluminium
Specifications for Pergola 4
Specifications vary by size, layout and selected options. Please
contact our pergola team
to confirm final dimensions, fixing requirements and included accessories before ordering.
Dimensions
- Product configuration
- Manual louvre pergola
- Standard footprints
- 3×3, 4×3, 4×4, 5×3, 6×3, 6×4, 8×3 and 8×4 m
- Largest listed nominal footprint
- 8×4 m
- Pass-through height
- Confirmed for the selected size and installation layout
- Total height (louvres open)
- Confirmed in the final product drawing
- Minimum height clearance
- Confirmed in the final product drawing
- Height options
- Fixed by selected standard configuration
- Maximum unsupported span
- Configuration and engineering dependent
- Post dimensions
- Confirmed for the selected configuration
- Beam dimensions
- Confirmed for the selected configuration
- Post, beam and louvre profiles
- Confirmed in the technical documentation for the selected configuration
Materials
- System
- Aluminium louvre pergola
- Finish specification
- Confirmed in the order documentation for the selected configuration
- Finish options
- Black, white, black frame with white louvres and Monet grey
- Corrosion and moisture performance
- Confirmed against the selected finish, site and supplied product documentation
- UV and fade performance
- Finish and exposure dependent; refer to the supplied care and warranty documents
- Fire performance
- Not stated as a standard rating; project requirements must be reviewed before order
Durability
- Rain protection
- Integrated concealed water-management and drainage system
- Maintenance
- Follow the care guide supplied with the selected product
- Wind and snow loads
- Confirmed for the selected size, fixing method and project location
- Engineering documentation
- Configuration and project specific
- Warranty
- 2-year GrainMetal product warranty, subject to warranty terms
Roof System
- Louvre construction
- Aluminium louvre roof system; final profile is configuration dependent
- Louvre rotation range
- 0–90° adjustable
- Roof drive system
- Manual louvre operation; final hardware confirmed for the selected configuration
- Electricity required
- No for manual roof operation
- Operating conditions
- Confirmed in the supplied technical documentation
- Rain protection
- Weather performance is confirmed for the selected configuration and installation
- Drainage
- Integrated concealed water-management and drainage options
Configuration
- Attachment type
- Freestanding, one side against a wall or wall-mounted
- Size options
- 3×3, 4×3, 4×4, 5×3, 6×3, 6×4, 8×3 and 8×4 m
- Custom sizing
- Available through the Custom Design Pergola S4 pathway
- Accessory channels
- Compatible side features are confirmed for the selected configuration
- Wall options

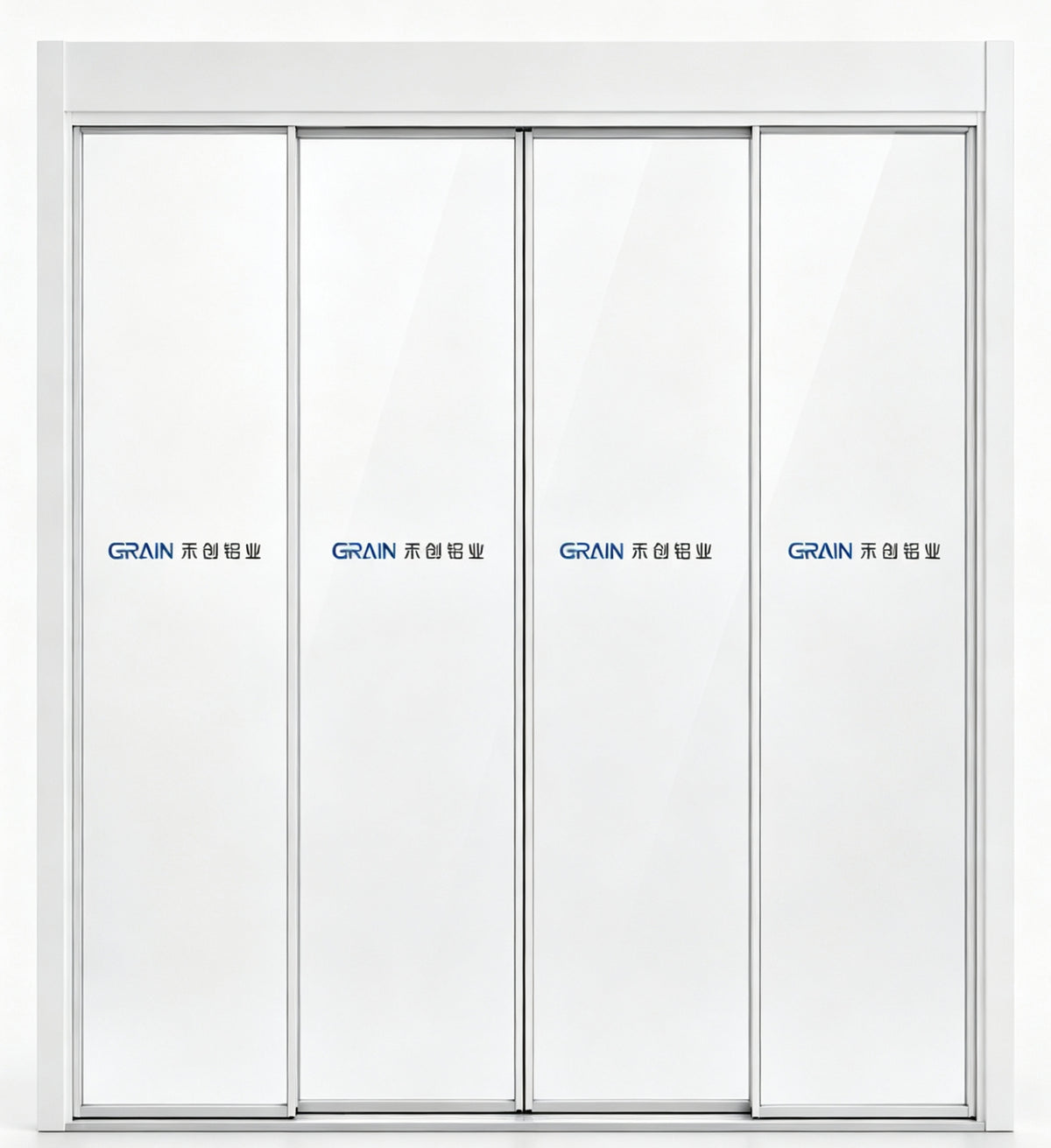

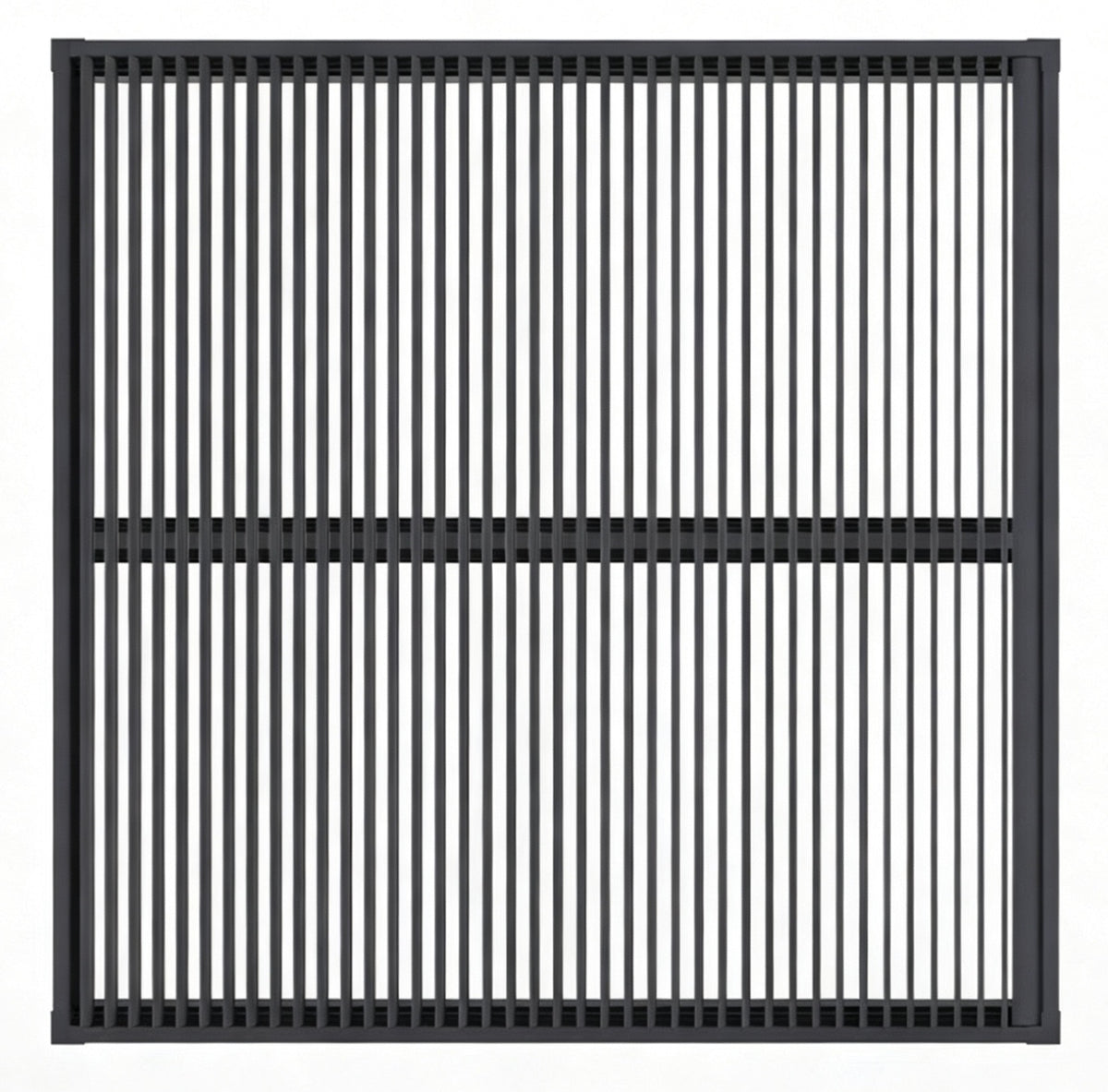

- Windproof blinds, decorative aluminium panels and glass doors
- Other accessories
- Project-specific accessory review available
Lighting
- Lighting option
- Optional lighting where offered for the selected model and configuration
- Dimming
- Lighting-package dependent
- Maximum LED brightness
- Confirmed for the selected lighting package
- Colour temperature
- Confirmed for the selected lighting package
- Light colour options
- Model and lighting-package dependent
Controls
- Remote control
- Not required for manual roof operation
- Remote range
- Not applicable
- Smart-home connection
- Not applicable
Installation
- Installation pathway
- Confirmed after review of the selected size, layout and project site
- Assembly time
- Size, layout and site dependent
- Installation surfaces
- Site and fixing method must be reviewed for the selected configuration
- Anchoring hardware
- Specified for the selected surface and engineering requirements
- Electrical required
- No for manual roof operation
- Professional assembly
- Availability confirmed by project location
- Additional tools required
- Installation method dependent; confirmed in the installation guide
- Mounting / installation type
- Freestanding, one side against a wall or wall-mounted
Pergola 4 is a manually operated aluminium louvre pergola for customers who want adjustable shade without a powered roof.
- Manual aluminium louvres adjust through a confirmed 0–90° tilt range.
- Available in freestanding, one side against a wall and wall-mounted configurations.
- A practical pathway for residential, commercial and trade projects.
The final specification is tied to the selected size, colour, layout and optional side configuration.
- Eight listed standard footprints: 3×3, 4×3, 4×4, 5×3, 6×3, 6×4, 8×3 and 8×4 m.
- Core finishes: Black, white, black frame with white louvres and Monet grey.
- Manual roof operation without power for the base roof system.
- Optional side configurations include windproof blinds, decorative aluminium panels and glass doors.
Project conditions must be reviewed before supply, especially where local approvals, unusual spans or existing structures are involved.
- Final structural details and anchoring requirements are confirmed for the approved configuration.
- The customer or installer remains responsible for site suitability, permits and local compliance.
- Share site photos, drawings, dimensions and foundation information when requesting technical review.
Installation planning depends on the selected layout, site condition and chosen accessories.
- The base roof is manually operated and does not require roof motor wiring.
- Any optional powered accessories must be specified separately and installed appropriately.
- Follow the supplied documentation and use qualified trades where required by the project or local rules.
Freight is confirmed from the selected size, destination and unloading requirements.
- Collection from Unit 10, 144–150 Canterbury Road, Kilsyth South VIC is by appointment.
- Eligible delivery within 30 km of the Kilsyth South warehouse has a flat A$500 freight charge.
- Other Australian and international destinations are supported and quoted individually. Delivery timing remains subject to size, destination and availability.
Supply-only and installation-supported pathways can be discussed with the GrainMetal Aluminium team.
- Installation is priced separately and is included only when stated in writing.
- Share the postcode, site access, footing or slab details, wall interfaces and preferred timing so availability and scope can be confirmed.
- Foundations, electrical work, permits and unusual access may require separate qualified trades.
GrainMetal Aluminium pergola products include a two-year product warranty, subject to the approved order documentation and warranty terms.
- Coverage applies to eligible manufacturing defects under normal intended use.
- Normal wear, misuse, unauthorised modification, incorrect installation and unsuitable site conditions are excluded.
- Rights under the Australian Consumer Law are not limited. Project-specific terms remain in the supplied documentation.
Pergola 4

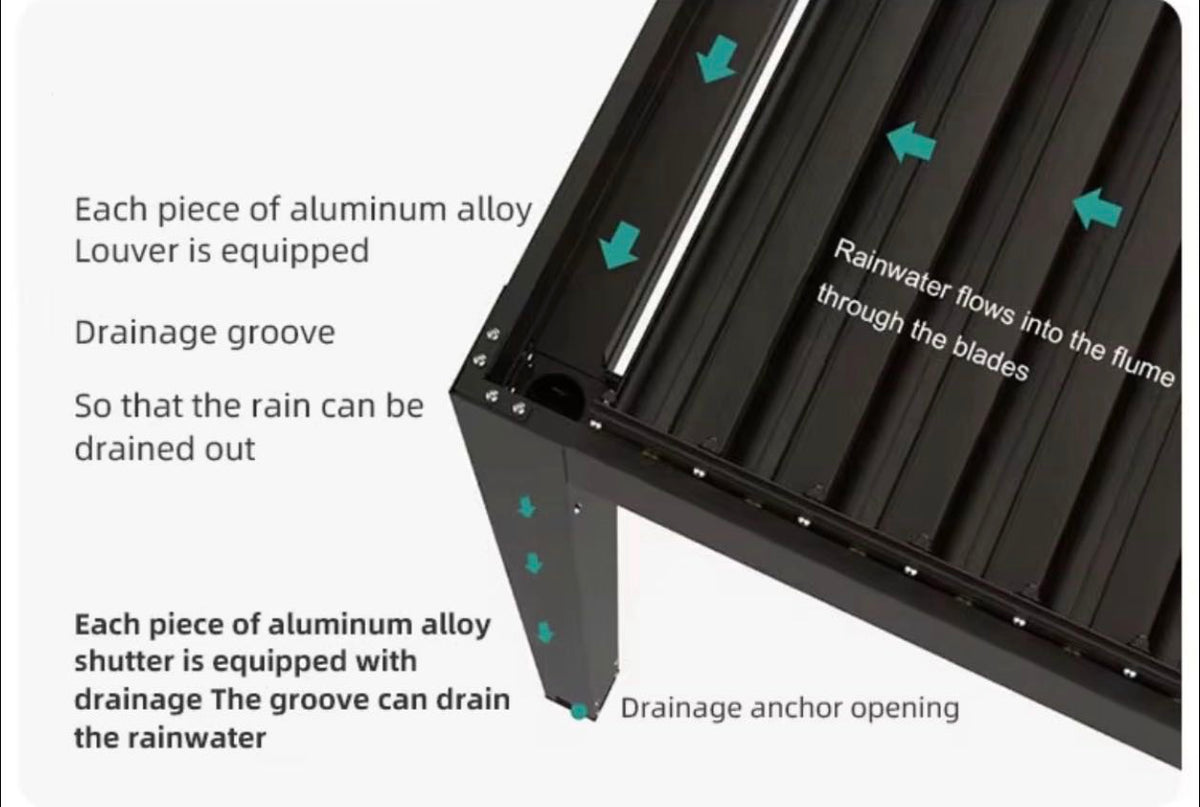

Concealed water management
Integrated water-management and drainage options help guide rainfall through the structure. Final drainage details are confirmed for the selected layout and site.
Pergola 4

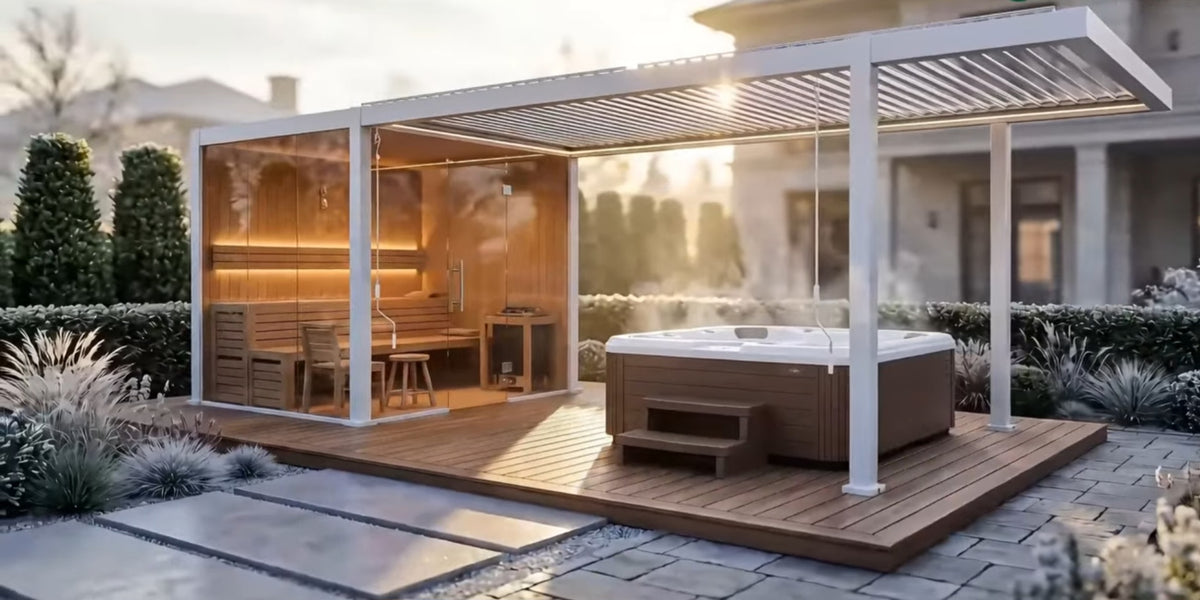

Layouts for different sites
Choose freestanding, one-side-against-wall or wall-mounted planning. Foundation, anchoring and connection requirements are reviewed for the approved configuration.
Pergola 4
Add the sides you need
Windproof blinds, decorative aluminium panels and glass doors can be reviewed as optional additions, allowing the space to evolve around the way it will be used.
PLAN YOUR OUTDOOR PROJECT
Talk with our pergola team
Share your preferred model, dimensions, colour, delivery location and installation needs. We will review the project and respond with the next steps.
WHY GRAINMETAL ALUMINIUM
A considered choice for your outdoor project.
Manual shade control
Adjustable 0–90° louvres without a powered roof system.
Flexible layouts
Freestanding and wall-connected configurations for different sites.
Optional side systems
Review blinds, aluminium panels and glass doors with the project.
Australia-based support
Local support for Australian projects and worldwide trade enquiries.
2 year warranty
Product warranty coverage subject to the approved documentation and terms.
Configuration clarity
Dimensions, freight and installation requirements are confirmed before supply.
FIND THE RIGHT CONFIGURATION
Compare GrainMetal pergola models
Select any model in each column to compare current starting prices and confirmed product pathways.
Manual
Pergola 4
from
$1,460.00 AUD
Roof system
Pergola 4
Manual adjustable louvre roof
Motorised
Pergola 4 Pro
from
$1,460.00 AUD
Roof system
Pergola 4 Pro
Motorised adjustable louvre package
Premium motorised
Pergola 4 Pro Max
from
$1,460.00 AUD
Roof system
Pergola 4 Pro Max
Premium motorised louvre project package| Compare | Pergola 4 | Pergola 4 Pro | Pergola 4 Pro Max |
|---|---|---|---|
| Roof system | |||
| Roof system | Manual adjustable louvre roof | Motorised adjustable louvre package | Premium motorised louvre project package |
| Operation & controls | Manual roof operation; no power required for the base roof | Motorised controls and electrical requirements confirmed per configuration | Controls and electrical requirements confirmed per project |
| Lighting | |||
| Lighting | Optional project lighting reviewed separately | Integrated lighting available within the approved configuration | Coordinated lighting specification within the approved package |
| Strength & durability | |||
| Structure | Aluminium pergola with anchoring and structural details confirmed for the selected configuration | Aluminium pergola with project-specific anchoring and connection review | Higher-specification aluminium pergola pathway with technical review |
| Product warranty | 2 year product warranty, subject to the supplied terms | 2 year product warranty, subject to the supplied terms | 2 year product warranty, subject to the supplied terms |
| Drainage | |||
| Water management | Integrated concealed water-management and drainage options | Concealed water-management and drainage options confirmed per layout | Water-management and drainage details confirmed for the selected layout |
| Assembly & installation | |||
| Installation pathway | Supply-only or separately quoted installation support | Supply-only or separately quoted installation support | Installation scope and access requirements quoted separately |
| Configuration | |||
| Sizing | 8 standard footprints plus reviewed custom enquiries | 8 standard footprints plus reviewed custom enquiries | Standard footprints and higher-specification enquiries |
| Colours | 4 core colour options | 4 core colour options | 4 core colour options |
| Installation layouts | Freestanding, one side against a wall or wall-mounted | Freestanding, one side against a wall or wall-mounted | Freestanding and wall-connected layouts reviewed per project |
| Optional sides | Optional blinds, aluminium panels and glass doors | Optional blinds, aluminium panels and glass doors | Coordinated blinds, aluminium panels and glass door options |
| Best suited to | Simple adjustable shade without roof motorisation | Convenient powered control and coordinated upgrades | Larger or more detailed motorised pergola projects |
Starting prices are shown from current Shopify product data. Final inclusions, freight, installation and project requirements are confirmed for the selected configuration.
